Heating & Cooling Skid Systems

Compact, skid-mounted temperature control systems for precise and reliable process heating and cooling.

Cheminsight designs and supplies integrated thermal circulation skids for reactors, crystallizers and other process equipment across pharmaceutical, API, specialty chemical and process industries.

Contact Now Send an Inquiry

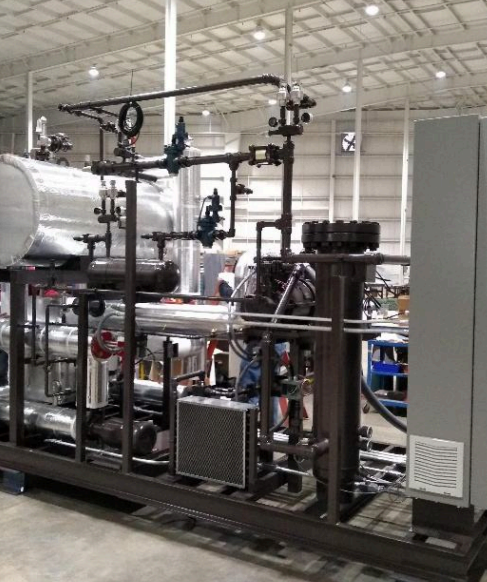

Skid-mounted heating and cooling system fabricated by Cheminsight

Overview

Heating & Cooling Skid Systems

Cheminsight’s Heating & Cooling Skid Systems (TCU) are compact, factory-assembled thermal circulation units designed to provide precise temperature control for process equipment. Our skid-mounted systems integrate heating, cooling, circulation, instrumentation and automation into a single package, reducing installation time and supporting reliable, energy-efficient operation.

What we deliver

Customized Heating & Cooling TCU Design
Skid Fabrication & Integrated Piping
Closed-Loop Thermal Fluid Circulation
Instrumentation, Control & Automation

Contact Now Request a Proposal

Capabilities

What’s included

Heating Capacity: 5–500 kW
Cooling Capacity as per Process Requirement
Temperature Range: −20 °C to +250 °C
Steam / Electric / Thermic Fluid Heating
Cooling Water / Chilled Water / Glycol Cooling
Closed-Loop Circulation System
Pressure, Temperature, Flow & Level Monitoring
PLC / DCS-Based Control with HMI / SCADA Integration

Material of construction

Typical MOC

Process piping & vessels	SS304 / SS316 / SS316L / Carbon steel
Heat exchangers	SS304 / SS316 / Carbon steel
Structural frame	Carbon steel / Stainless steel
Valves & fittings	SS / CS / Alloy steel

Why Cheminsight

Designed around your process

We engineer each thermal skid around the required temperature range, heating and cooling duty, circulation fluid, process equipment and control philosophy - a compact, integrated solution from engineering through commissioning.

Compact Skid-Mounted Design
Precise Temperature Control
Factory-Assembled & Tested
Reduced Installation Time
Energy-Efficient Operation
Integrated Instrumentation & Automation

Applications

Typical applications

Reactor Jacket Temperature Control
Crystallization Systems
Batch Process Temperature Control
Distillation Heating & Cooling
Fermentation Systems
Heat Exchanger Circulation
Continuous Flow Reactors
Pharmaceutical & API Plants
Specialty Chemical Plants
